| Type | AlSi10Mg | |||||
chemical composition wt.% | O | Al | Si | Mg | Fe | Ni |
| ≤0.05 | Bal. | 7.00 | 0.5 | ≤0.2 | ≤0.05 | |
| Mn | Sn | Cu | Pb | Zn | Ti | |
| ≤0.45 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.05 | |
physical properties | size distribution μm | carney flow rate s/50g | apparent density g/cm3 | oxygen content ppm | nitrogen content ppm | sphericity % |
| 20-63 | ≤15 | ≥1.40 | ≤500 | ≤100 | ≥90 | |
mechanical properties (after heat treatment) | test temperature | tensile strength MPa | yield strength MPa | elongation % | ||
normal | 310-330 | 210-220 | ≥11 | |||

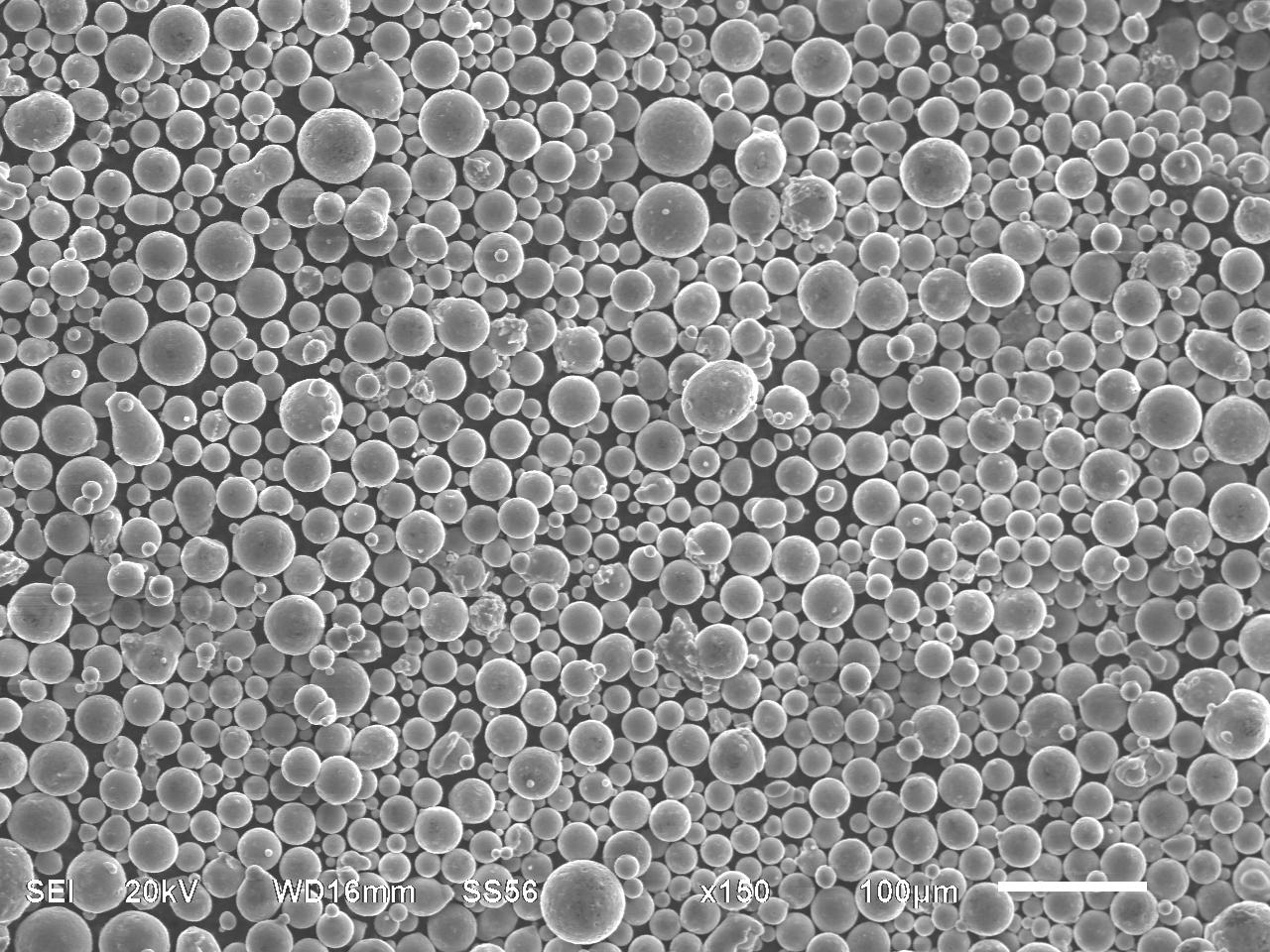

| SEM |  | |||||
-
